BIOGAS OPEN FLARE

The KF-XXXBOF is specifically designed for dependable flaring operation that utilizes low BTU anaerobic digester waste gases. It efficiently incinerates waste gases, thus minimizing odors and VOCs.

Stagging system ensures that slipstream pilot gas is continuously lit to maintain the flame present on the flare system.

Its stainless steel components endure the severest process environments. The burner tip is designed to produce an efficient air/gas mixture and maximize flame retention. The wind shroud induces sufficient air to the flare tip for proper mixing and combustion throughout the operating range. It also protects the flame from wind for stable flame.

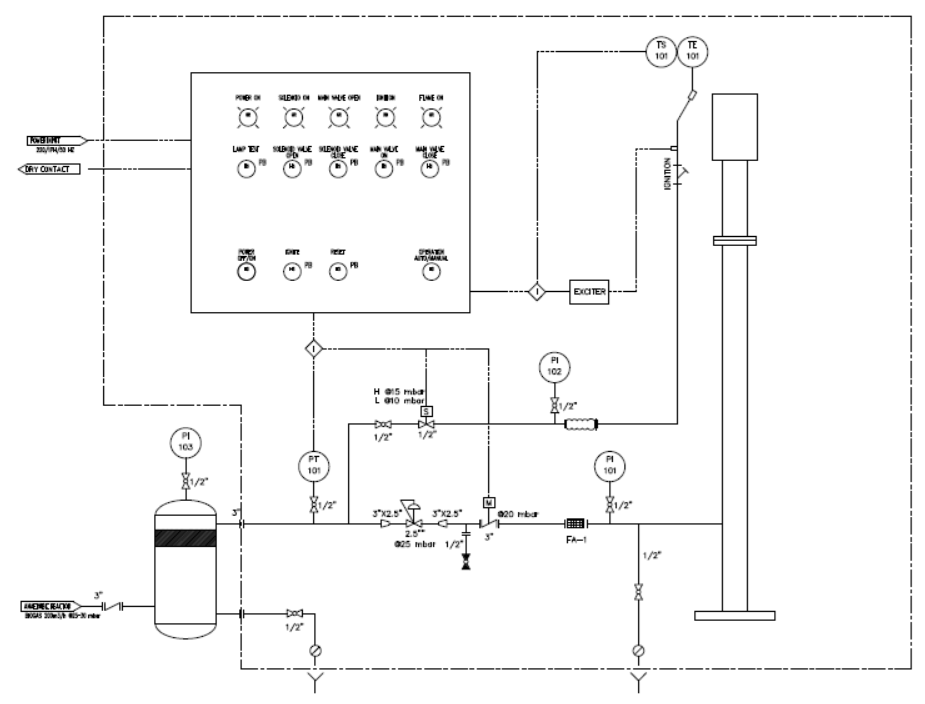

The pilot control system features both a switch and a button for powering on, resetting, and toggling between auto and manual operation. It also includes an indicator light that shows when the power flame is ON. Additionally, the system provides a dry contact input for remote starting and a contact status output for alarm notifications and flame activity.

The auto-ignition sequence is started as soon as the auto mode is selected on the control panel, when the necessary gas pressure is reached the flaring of the excess gasses will begin.

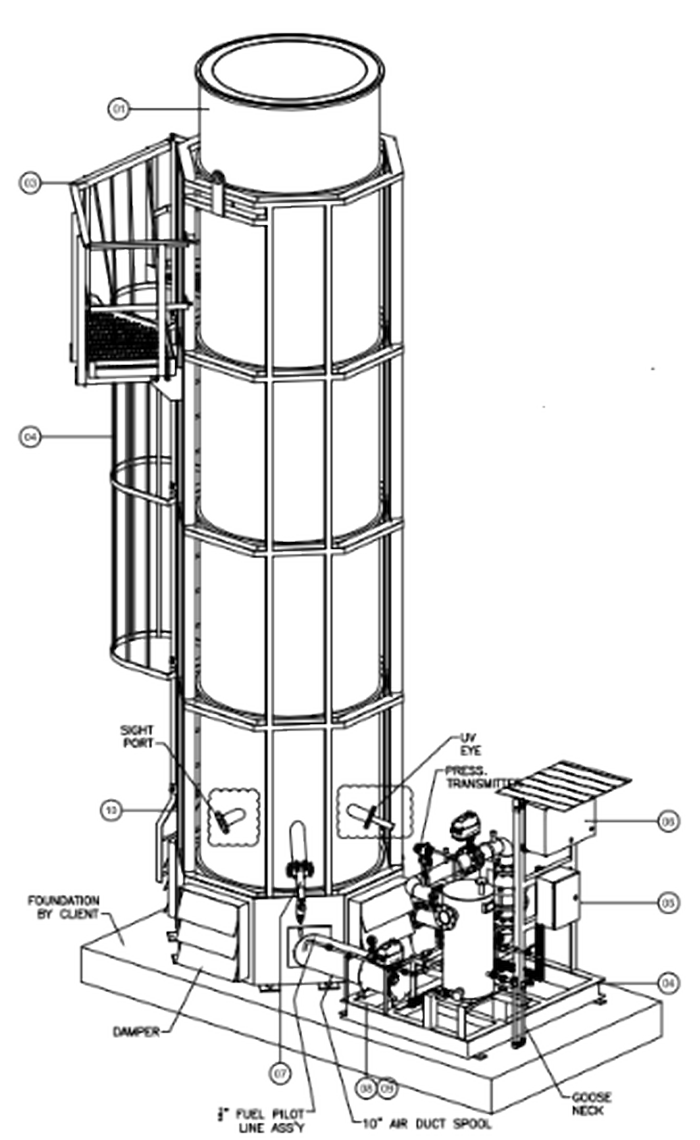

BIOGAS ENCLOSED FLARE

KF-XXXBEF removes harmful emissions from waste gas streams such as anaerob digester. This unit is specifically designed to bring emissions levels to within allowable limits as dictated by customer requirements or government body.

Every unit is designed for maximum destruction efficiency for each application’s process parameters. Provides very low NOX and CO emissions. Key data, such as gas stream composition and flow rates, are used to determine the appropriate residence time of the waste gas inside the stack. This is critical to both the reliability of the emissions removal as well as the efficiency of operation.

Components of construction include carbon steel or stainless steel for stack, pedestal, base, pilot piping and manifold as specified.

Staging system controlling gas release by back pressure regulator maintain pressure at upstream when flowrate turndown is high

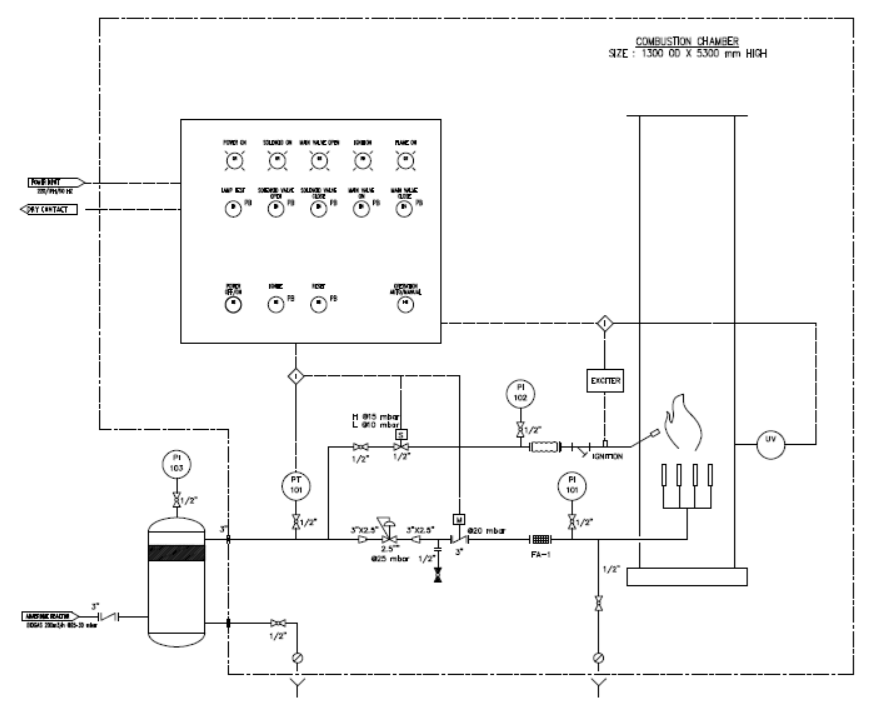

The Automatic Ignition System accepts a remote contact or signal from a pressure sensor to initiate ignition sequences. Advanced pilot design include UV sensor for positive flame proofing.

The KF-XXXBEF can be configured with any combination of measuring instruments for complete recording and reporting. Flexible operation is achieved through innovative software and hardware design.

Convertible manways for ease of maintenance and inspection.
The KF-XXXBEF withstands the severest of process environments including high wind loading and seismic conditions as specified.
